The row-based Liebert APM is a transformerless, on-line UPS that allows quick and easy capacity increases with modular power scalability - no additional floor space required. The UPS operates with high efficiency - up to 94% at loads of 50-100%.

The row-based Liebert APM is a transformer-free, on-line uninterruptible power supply (UPS) that allows quick and easy capacity increases with modular scalability--with no additional floor space required. Liebert APM operates with high efficiency--up to 94% at loads of 50-100%. The 208 Volt, three-phase Liebert APM is available in two models, expandable with modular power scalability: Liebert APM 45kVA/kW frame size is expandable from 15 to 45kVA/kW, with up to 45kVA/kW of capacity, or up to 30kVA/kW of capacity with a 15kVA/kW module for redundancy. This frame size includes internal batteries, and is compatible with the matching external battery cabinet and the optional Liebert APM bypass distribution cabinet (BDC). Liebert APM 90kVA/kW frame size is expandable from 15 to 90kVA/kW, with up to 90kVA/kW of capacity, or up to 75kVA/kW of capacity with a 15kVA/kW module for redundancy. This frame size requires the matching external battery cabinet, and is compatible with the optional Liebert APM BDC bypass distribution cabinet.

A Scalable UPS as Dynamic as Your Data Center

Prevent power interruptions and ensure the future flexibility and efficiency of your data center infrastructure, with the Liebert APM UPS. Leverage the innovative modular configuration, cost-efficient operation and flexibility to match increasing power demands all while ensuring critical reliability.

Availability and Flexibility is enhanced with standard and optional features

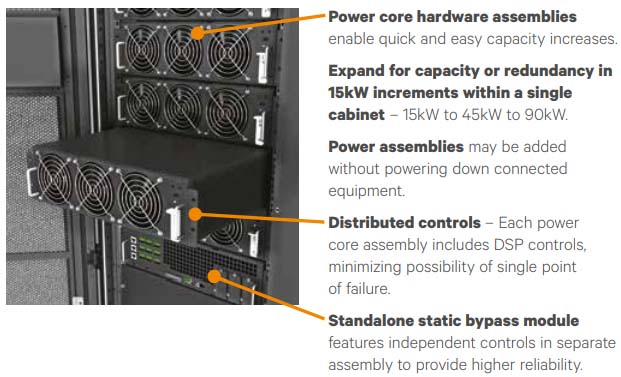

Obtain redundancy and scalability using innovative Liebert modular power core assemblies. Each includes distributed intelligence and scalable power in one common module.

This technology allows configuration of a completely redundant power and control system, sized to match the capacity of the protected equipment. When power requirements change, capacity is easily added – without increasing the system footprint.

The Liebert APM UPS scales from 15 to 45kW in a cabinet configuration that includes internal batteries, or from 15 to 90kW in 15kW increments in a configuration that reserves a cabinet for capacity that is paired with an external battery cabinet. This approach allows for right-sizing of the UPS, resulting in improved energy efficiency and reduced power expenditures.

Liebert APM UPS supports dynamic environments and IT growth

Flexibility

Capacity can be expanded in 15kW increments using modular power core assemblies
45kW model includes internal batteries and can also obtain extended run time with external battery cabinets
90kW model uses external battery cabinets only
Easy Installation – front service access, smaller footprint
208V, 480V and 600V input configurations
Matching bypass and distribution cabinet – increase reliability and safety by switching the protected load to bypass power for maintenance and service
Top or bottom cable entry – enables installation on raised or non-raised floors

The row-based Liebert APM is ideally suited for:

Small to medium-size data centers
Server rooms
Production areas
Labs and testing facilities
Telecommunications
Process control centers

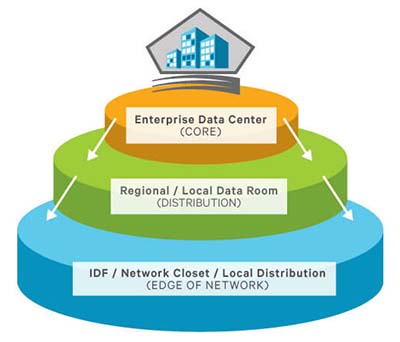

Edge of the network locations

Resilient and Reliable for Mission Critical Applications

Higher Availability

Minimizes single points of failure
Redundant Internal power supply
Distributed controls – each power core assembly includes DSP controls
Standalone static bypass module – features independent controls in separate assembly to provide higher reliability
Parallel UPS Systems - configure for redundancy or increased capacity

Capacity and Agility, On Demand

With the innovative power modules, capacity deployments can occur rapidly.

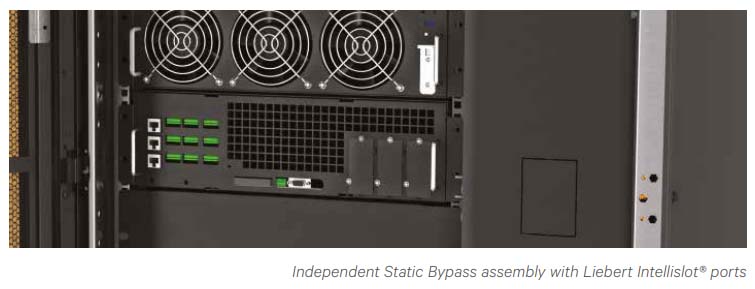

Independent Static Bypass assembly with Liebert Intellislot ports

Efficient Design and Operation Through-out the Lifecycle

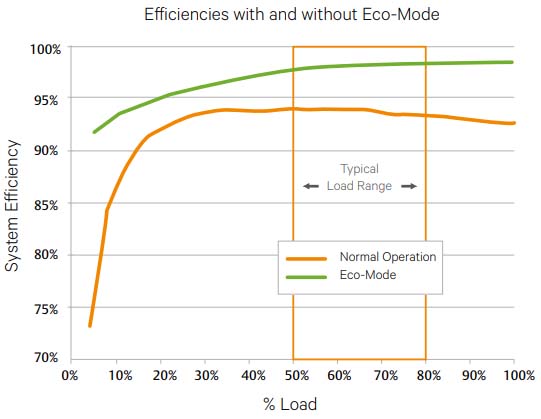

Liebert APM UPS offers excellent efficiency, up to 94% in double conversion and up to 98% in Active Eco-mode.
More importantly, with its optimized modular design, high efficiency levels can be obtained with the initial system, instead of purchasing larger capacity systems to anticipate future requirements.

Low Total Cost of Ownership y High-efficiency rating (up to 94%), rom 50-100% load
ENERGY STAR qualified UPS
Expand as you need with the flexibility to add capacity as demand increases
One-year warranty – provides full system coverage

Efficient Design and Operation Through-out the Lifecycle

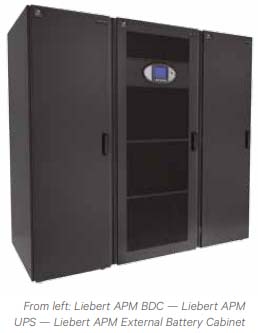

Dynamic Configurations Enhance Deployment

UPS Cabinet

One assembly per cabinet may be used for redundancy (up to 30kW + 15kW redundant; up to 75kW + 15kW redundant)

Battery Cabinet

Add runtime for 45 kW system; required for 90 kW system

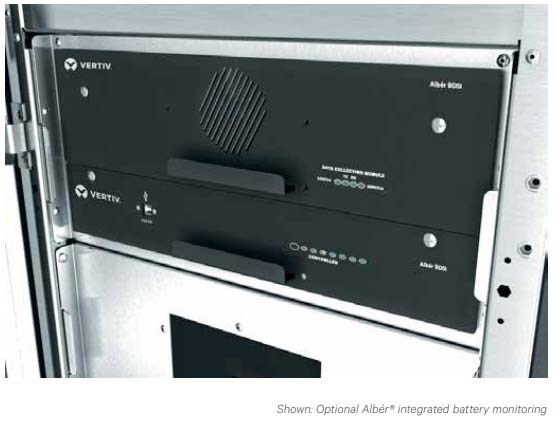

Optional Albér factory integrated battery monitoring for proactive battery management to ensure availability

Bypass Distribution Cabinet

External maintenance bypass for complete serviceability while load is running on bypass utility power
Integral distribution saves space and cost
Kirk-key interlock ensures proper operation
65 kAIC rating meets high electrical withstand requirements Battery Cabinet

Intelligence — Where and How You Need It

The Liebert APM UPS provides robust, flexible ancillary features to ensure the system meets your demands.

Simple and Comprehensive Monitoring
The menu-driven control panel on Liebert APM UPS is easy to read and use. Multiple parameters are monitored; data is recorded, stored and easily viewable. Unit metering and status information is displayed in a logical format, and is selectable in multiple languages. The UPS also includes three Liebert IntelliSlot ports for web-based communications capability:

Liebert IS-UNITY-DP allows 2 simultaneous 3rd party communication protocols, LIFE Services and environmental sensor support
Liebert IntelliSlot card IS-WEBL allows communication with Liebert Nform and web page access
Liebert IntelliSlot IS-IPBML offers Web Configuration, Telnet and Modbus or BACnet IP for connectivity to a Building Management System
Liebert IntelliSlot IS-485L offers serial configuration and Modus 485 connection to a Building Management System or Liebert SiteScan

Enterprise-Quality Batteries Increase Reliability
Battery quality is key to the reliability of the UPS and to the availability of the protected equipment. Liebert APM UPS provides the same reliable battery technology that supports enterprise UPS systems.

Lower initial cost
Better service life
Battery warranty – 3 years full warranty, 7 years pro-rated
Backed by the largest service organization in the industry
Optional Albér battery monitoring ensures battery reliability allowing for proactive management

Innovative technologies make the Liebert APM UPS an intelligent device for enhanced connectivity, visibility and control

Management and Control Solutions
The UPS includes multiple Liebert communication ports for important connectivity and visibility for rich infrastructure management:

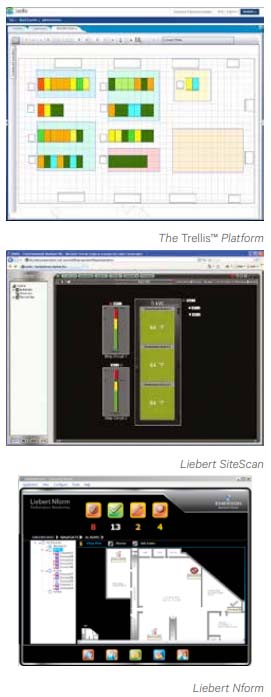

The Trellis Platform: Provides robust Data Center Information Management (DCIM) capabilities using selectable modules and suites.
Liebert SiteScan: Offers centralized monitoring and control of all critical infrastructure systems, using a variety of network protocols.
Liebert Nform: Enables data center monitoring for any SNMP device that supports a network interface.
Third party BMS systems: integrates seamlessly

Albér Battery Monitoring Systems:

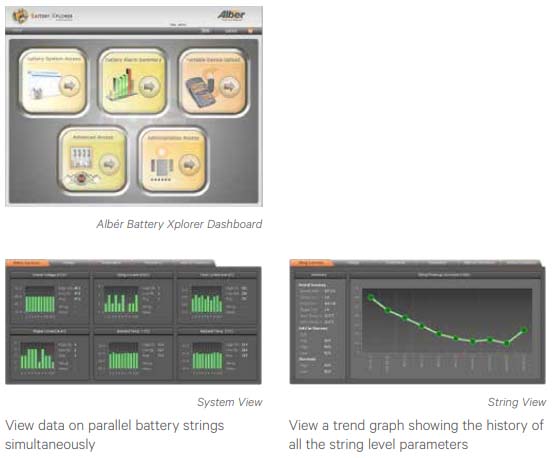

With a new, easy to use software interface, an Albér factory integrated or stand alone battery monitoring system provides advance warning of pending UPS battery failures, the most common cause of unplanned data center outages. Utilizing its patented DC resistance testing method, Albér provides real-time system and component level visibility by verifying the state of health of the entire battery system.

Albér Battery Monitoring Systems

Features and Benefits:

Benefits

Internal bypass allows modular power assemblies to be added or replaced without powering down the connected equipment.
Conveniently positioned, easy-to-reach lug holes simplify unit wiring and installation.
Higher Availability
- True on-line, double conversion technology corrects for all types of power fluctuations.
- Redundancy features minimize single points of failure.
- Enterprise-quality batteries in an external battery cabinet provides backup time for 90kVA/kW unit, and additional runtime for 45kVA/kW unit.
- Optional bypass distribution cabinet (BDC) provides wraparound maintenance bypass, so the attached load can keep running during UPS service.
Lowest Total Cost Of Ownership
- Buy only what you need for present usage, with the flexibility to add capacity as demand increases.
- High operating efficiency (up to 94%), with a virtually flat efficiency curve from 50-100% load; efficiency is not load-dependent, which translates into significant energy cost savings.
- Fewer batteries mean less maintenance and higher reliability.
- Operates with unity power factor, where kW = kVA, providing more real power capacity without power losses.

Features

Operates with high efficiency rating - up to 94%
Scalable UPS protection for growing data centers
Capacity expansion in 15kVA/kW increments using modular power assemblies
Modular power offers capacity growth without increasing footprint
Fits row-based applications
Large and user-friendly LCD display with operating information in twelve languages.
LIFE Services for remote monitoring and proactive services delivery
ENERGY STAR qualified

Specifications:

Liebert APM UPS Specifications
Power Rating – kW/kVA	15, 30, 45	15, 30, 45, 60, 75, 90
Frame Size	45kW	90kW
Input AC Specification
Phase	3
Power Factor	0.99 lagging minimum at full load
Frequency Range	40-70 Hz
Input Voltage	208, 220, 480, 600VAC, 60Hz, 3-phase, 4-wire plus ground
General Specifications
UPS Technology	On-Line, Double Conversion
Battery Specification
Battery Test Type	Online
Battery Technology	Valve-regulated lead acid battery; supplied by Enersys
Output AC Specifications
Voltage	208/120, 220/127VAC, 60Hz 3-phase, 3- or 4-wire plus ground
Frequency − Hz	60 Hz
Communications
Communications Options	Liebert IntelliSlot IS-485EXT, Liebert SiteScan, IS-WEBL, Liebert Nform
Physical Data UPS
Dimensions, W X D X H in (mm)	31.8 x 39.5 x 78.7 (800, 1000, 2000) Note: 12 inches of rear clearance required for cooling
UPS Rating	Unit Weight lb (kg)
15kW	919 (417)	705 (320)
30kW	994 (451)	780 (354)
45kW	1069 (485)	855 (388)
60kW	NA	930 (422)
75kW	NA	1005 (456)
90kW	NA	1080 (490)
Physical Data Bypass Distribution Cabinet
Dimensions, W X D X H in (mm)	23.625 x 39.5 x 78.75 (600 x 1000 x 2000)
Weight lb (kg)	902 (410)
Physical Data Battery Cabinet
Dimensions, W X D X H in (mm)	23.625 x 39.5 x 78.75 (600 x 1000 x 2000)
Weight lb (kg)	1554 (705) with Hx150 batteries, 1693 (768) with HX205 batteries, 2101 (953) with HX300 batteries, and 2366 (1073) with HX330 batteries.
Environmental
Operating Temperature Range	UPS: 32° to 104°F (0-40°C); Battery: 68° to 86°F (20-30°C)
Relative Humidity	0% to 95%, non-condensing
Operating Altitude	Up to 3,300 ft. (1,000m) without derating
Acoustical Noise, db, at 39 in.	Less than 56 dBA typical, 3.3 ft. (1m) from the unit
Agency/Certification/Conformance
Certification	Listed to UL 1778 and UL 924 UPS standards, and CSA certified. Meets current requirements for safe high performance UPS operation. ENERGY STAR qualifed UPS – 208V models
Standard Warranty	1 Year

Views:

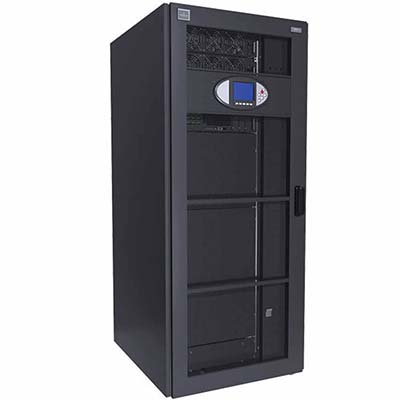

Liebert APM UPS

Liebert APM

Liebert APM

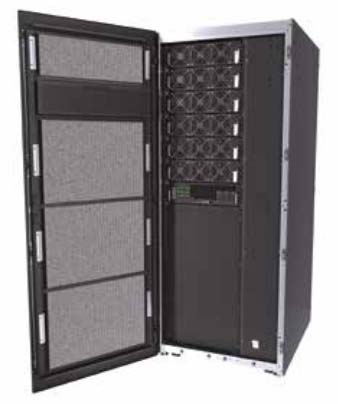

Liebert APM 90 kW Open

Liebert APM 90 kW Open

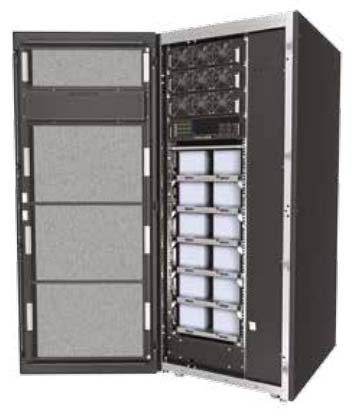

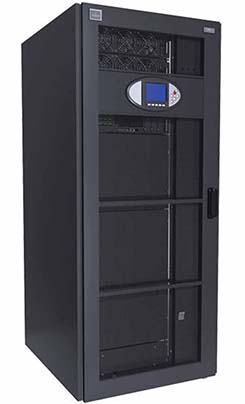

Liebert APM 45 kW with internal batteries

Liebert APM 45 kW with internal batteries

Critical Services and Support:

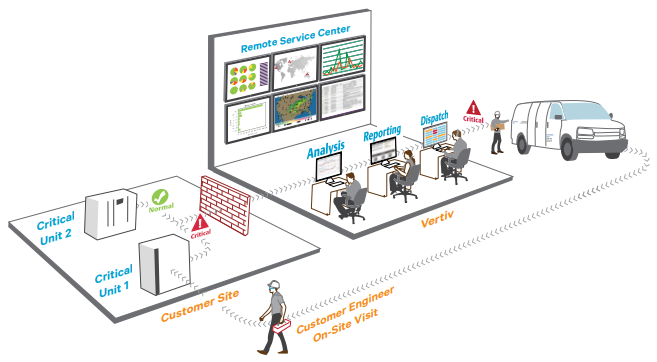

LIFE Services, offered by Vertiv, provides increased uptime and operational efficiency through continuous monitoring, expert analysis, and proactive response that ultimately helps you optimize the health of the Liebert APM UPS and have peace of mind.
