Vertiv Liebert GXT4 UPS
5kVA-10kVA - Intelligent, Reliable UPS Protection
Click here to jump to more pricing!
Overview:
- Banking, Financial and Insurance
- Education
- Government
- Healthcare
- Retail and Wholesale
Recommended to protect mission-critical equipment, Liebert GXT4 is a true on-line UPS that delivers continuous, high-quality AC power with no break when transferring to battery.
Today’s converged networks require increased availability and reliability. IT professionals require higher density power protection systems that adapt to mixed load voltages and plug types, while remaining easy to install and maintain.

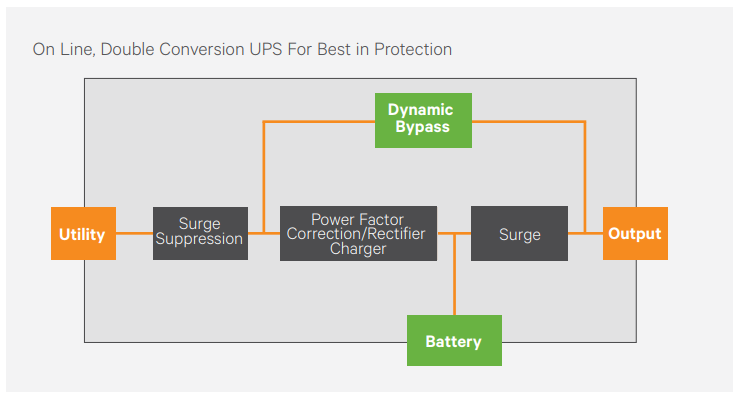

The Liebert GXT4 UPS meets the need for higher power capacities in small spaces. This true on-line double conversion UPS system is available in larger capacity models of 5kVA – 10kVA, and features integrated maintenance bypass, as well as optional extended battery runtime. Plus, Liebert Services provides an optional Power Assurance Package for life-cycle support for your UPS, including installation, start-up, and on-site service.
The Liebert GXT4 UPS is designed for use in either rack or tower configurations. 220V, 230V and 240V 50/60 Hz models are offered with CE and C-tick markings.
Dual Voltages For Multiple Applications
Output voltages of 240/120, 208/120, 230/115, 220/110, or 200/100 VAC provide the flexibility to adapt to multiple load requirements without the need to add additional transformers that take up extra space and add weight. Input power factor correction to 0.99 reduces current harmonics and their heating effects.

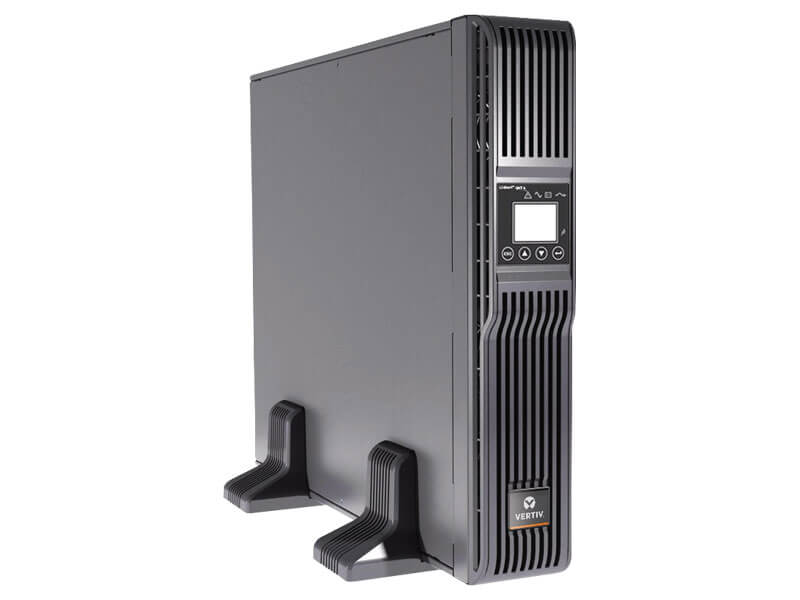

5 and 6kVA Models Offer True On-Line Power In A Convenient Rack Configuration
Liebert GXT4 UPS 5 and 6kVA models are true on-line UPS systems that provide internal batteries and dual output voltage. They are an ideal fit for applications where the power requirements are demanding such as network closets or small equipment racks.
Adaptable Design
For installation flexibility, the Liebert GXT4 UPS 5 and 6kVA models allow you to choose from several different wiring configurations made possible by the use of removable power distribution boxes (PODs) that simply plug into the rear of the UPS. The standard box provides terminal blocks for hardwired input and output connections. An optional hardwire version that includes a maintenance bypass is also available.
When the ease of plug-and-play power connections is desired, optional versions of the power distribution box convert Liebert GXT4 UPS 5 and 6kVA units to a cord-type input with receptacles for output distribution, and also offers maintenance bypass capability that allows hot-swapping of the entire UPS without interruption of power to the connected load.
The UPS has as adaptable dual inverter design, capable of providing output voltages of 240/120, 208/120, 230/115, 220/110, or 200/100 and an output power factor of 0.8.

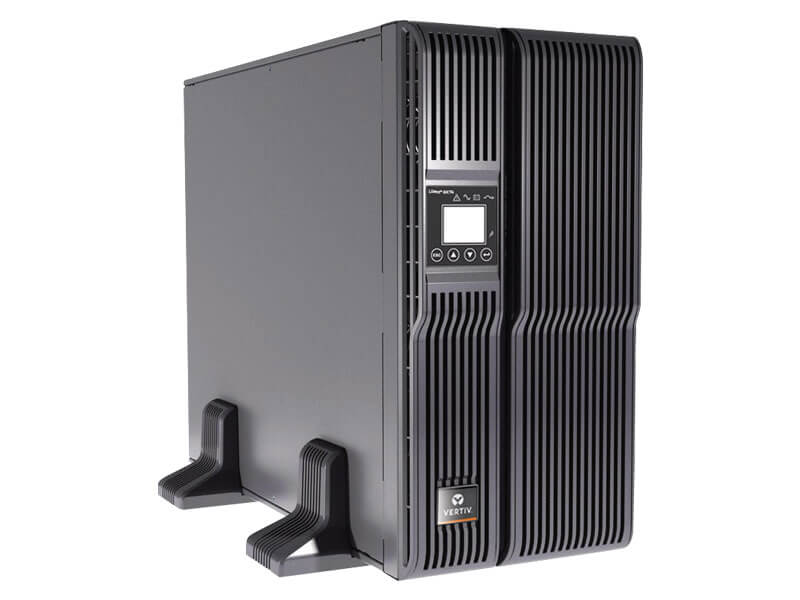

8kVA and 10kVA Models Provide Even More Power
The Liebert GXT4 UPS 8 and 10kVA units offer a flexible solution for protecting rack-mount equipment, including VoIP and PoE. Specifically designed for use with the new generation of high power switches, these compact UPS systems pack 8kVA (7.2kW) or 10kVA (9kW) of power into a 6U rack/ tower package with flexible output voltage and optional output distribution. The UPS includes built-in, replaceable batteries for up to 5-8 minutes of runtime at full load depending on model.
Adaptable Design
The UPS has a dual inverter design, capable of providing 5 output voltages of 240/120, 208/120, 230/115, 220/110, or 200/100 and an output power factor of 0.9. The 6U size is the smallest for 208/120 selectable voltage in the 8-10kVA model range.
The unit features integrated internal automatic and manual maintenance bypass, power module, battery modules, and optional plug-and-play distribution plates. The standard 8 and 10kVA models include terminal blocks for hardwired connections of both input and output. Optional power distribution modules (PODs) are available to add output receptacles to the rear panel of the unit.
Hot-Swappable Operation
Liebert GXT4 UPS 8 and 10kVA units feature three bays for one power module and two battery modules. The chassis contains a bypass switch that allows all modules to be removed without powering down the connected load.
Total Care and Support for Critical Systems

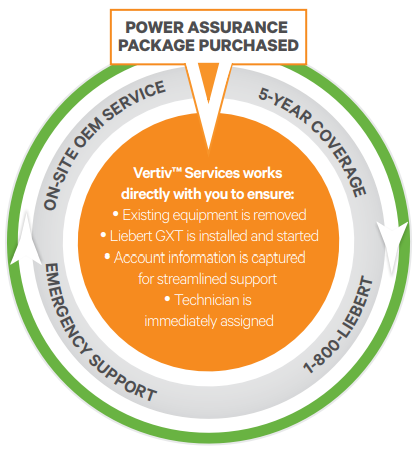

Power Assurance Package: Comprehensive On-site Services – A Partner To Assure Uptime
- Five-year protection plan: with 100% parts coverage and 7x24 emergency service.
- On-site installation and start-up: Installation and start-up of UPS and internal batteries (excludes hard-wired applications), configuration of new UPS and accesories, and, if purchased, safe removal and disposal of old UPS and batteries.
- On-Site service support: 7x24 support (within 150 miles of regional service center) and 100 percent labor and travel coverage.
- 100% parts coverage: For internal batteries, POD (Power Output Distribution) and web card.
- 7x24 Access to customer resolution center and on-line access to Customer Services Network.
- Preventative Maintenance in third to fifth year for 5-10kVA models only.
Key Benefits:
- Pain-free multi-site rollout management
- Frees up time-strapped IT staff by managing and tracking UPS health, maintenance and service.
- Reduces the worry of critical equipment downtime.
- Ensures rapid recovery in the event of failure within 24-48 hours.
- Frees you from the responsibility of handling and documenting the disposal of hazardous materials, like batteries.
Features and Benefits:
Flexibility:
- Rack/tower configuration

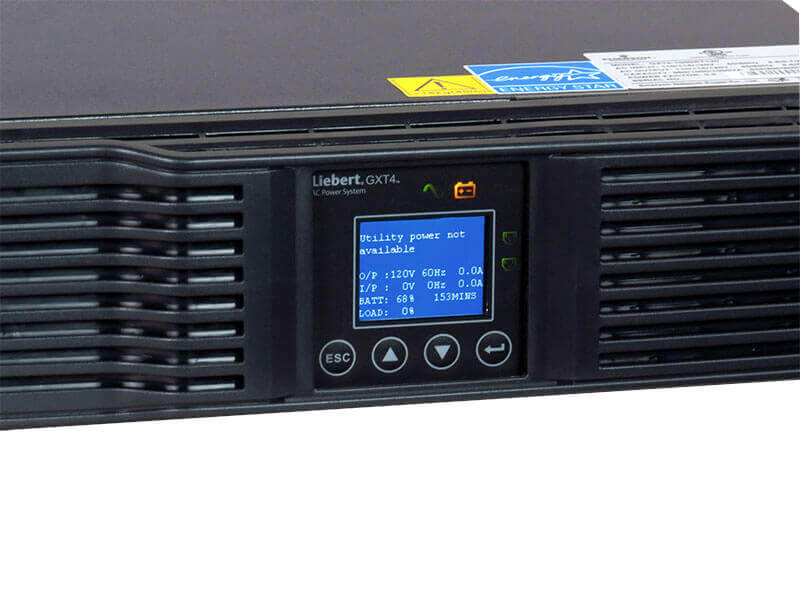

The versatile unit installs in either configuration, and includes a rotating color LCD display. - Automatic frequency detection
Detects and matches line input frequencies of either 60 or 50 Hz and can also be programmed to convert from one to the other. - Replaceable hot-swappable internal batteries
Provide 5-8 minutes of runtime at full load depending on the model. - Additional runtime with additional battery cabinets

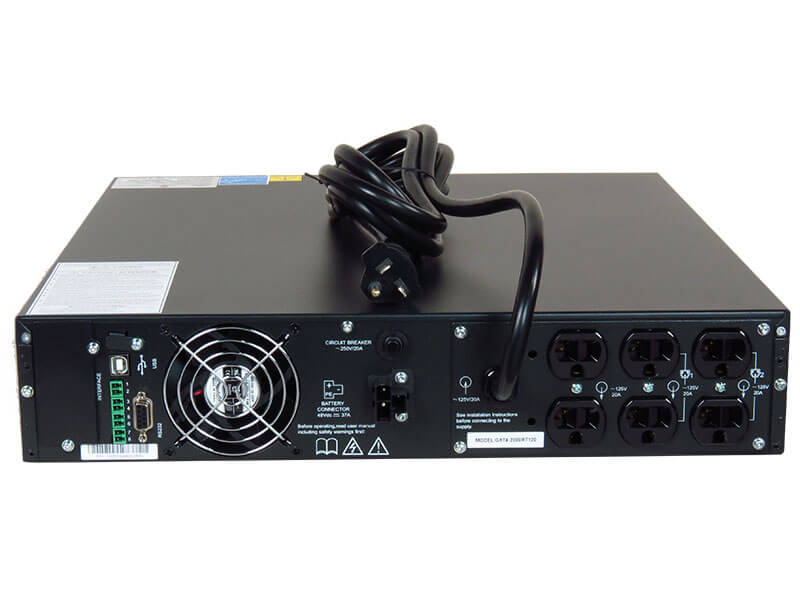

UPS cabinet includes rear panel plug-and-play connections for optional battery cabinets. Cabinet sizes: 5/6 kVA 208/120V - 2U, 6 kVA 208V and 8-10 kVA 208/120V - 4U. - Optional Unity communications card with environmental sensors
(Options for temperature, humidity, leak detection, door open status and more). - Liebert IntelliSlot communications port
Provide SNMP and web-based monitoring and control of your UPS. - Includes Windows-based configuration program
Allows various operating parameters to be adjusted and tests to be scheduled. - Built-in USB communications for use with Liebert MultiLink Automated Shutdown Software
Allows you to monitor communication between the UPS and a server, and ensures a graceful unattended shutdown. - Built-in closure signals
Provides notification to monitoring systems of operating conditions. - Emergency Power Off (EPO)
Terminal connections to integrate into your Emergency Power Off (EPO) system.
Higher Availability:
- Wider input voltage window minimizes battery use
Features a wide input voltage window that allows the UPS to support the critical load without having to transfer to battery, extending battery life for when it is truly needed. - Internal automatic and manual bypass
Assures continuity of power to critical loads during system maintenance or in case of internal fault. - Self-diagnostics
Automatically tests unit electronics and batteries. Designed to simplify maintenance and troubleshooting.
Lowest Total Cost Of Ownership:
- Selectable Eco-Mode
Connected equipment can be powered through the bypass while the inverter remains at idle, reducing electricity consumption. - Standard two-year advanced replacement warranty
No-hassle warranty provides paid shipping both ways. Optional one-year and three year extensions available. - Battery cutoff voltage
Automatically adjusts based on load, extending battery life by preventing over-discharge of batteries. - ENERGY STAR qualified UPS models
UPS products meeting the EPA’s requirements use an average of 35% less energy than their standard counterparts.
Specifications:
| Liebert GXT4 UPS Specifications - 5, 6, 8 and 10 kVA Models | |||||
|---|---|---|---|---|---|
| Power Rating – kW/kVA | GXT4-5000RT208 | GXT4-6000RT208 | GXT4-8000RT208 | GXT4-10000RT208 | GXT4-6000RTL630 |
| Internal Battery Supported | 4000W/5000VA | 4800W/6000VA | 7200W/8000VA | 9000W/10000VA | 4200W/6000VA |
| Internal Battery Supported | 16.9 x 26.1 x 6.8 (430 x 662 x 173) |
16.9 x 26.5 x 10.3 (430 x 672 x 261) |
16.9 x 22.6 x 8.5 (430 x 574 x 217) |
||
| Internal Battery Supported | 131.8 (69.9) | 212.7 (96.7) | 132.2 (60) | ||
| Input AC Specification | |||||
| Nominal Operating Frequency | 50 or 60Hz (Factory Default is 60Hz) | 50 or 60Hz (Factory Default, 60) | |||
| Factory Default VAC | 120/208VAC at 120 degrees | 208VAC | |||
| Factory Default L1-N, L2-N VAC | 120 VAC nominal | - | |||
| Input Frequency w/o Battery Operation | 40 - 70 Hz | 40 - 70Hz | |||
| Input Power Connection | Hardwire Terminal Block 3W + G (L-L-N-G) | L6-30P Plug (on PD-L630 power distribution box) | |||
| L1-N, L2-N Maximum Allowable VAC | 150VAC | - | |||
| Output AC Parameters | |||||
| Factory Default VAC | 120/208VAC @ 120 degrees | 208 | |||
| Factory Default L1-N, L2-N VAC | 120VAC nominal | - | |||
| User Configurable L1-N, L2-N VAC | 100/110/115/120/VAC, ±2% | - | |||
| Overload Rating | |||||
| 105% to 130% | 1 Minute | ||||
| 131% to 150% | 10 seconds | ||||
| 151% to 200% | 1 second | ||||
| >200% (impact load) | At least 5 cycles | ||||
| Environmental Sensors Options | |||||
| Operating Temp, °F (°C) | 32 to 104 (0 to 40) | 32 to 104 (0 to 40) | |||
| Storage Temp, °F (°C) | 5 to 122 (-15 to 50) | ||||
| Audible Noise | Less than 55dBA at 3.2ft. (1m) rear; less than 50dBA at 3.2ft. (1m) front and sides | ||||
| Operating Elevation | Up to 10,000 ft. (3000m) at 77°F (25°C) without derating | ||||
| Relative Humidity | 0% to 95%, non-condensing | ||||
| Agency | |||||
| Safety | UL 1778, c-UL Listed | ||||
| RFI/EMI | FCC Class A | ||||
| Surge Immunity | IEEE/ANSI C62.41 Category A & B | EN61000-4-5 | |||
| Transportation | ISTA Procedure 1E | ||||
| ENERGY STAR qualified | Yes | ||||
| Replacement Internal Battery Part Numbers | |||
|---|---|---|---|
| Model Number | GXT4-144VBATKIT | GXT4-240VBATKIT | GXT4-288VBATKIT |
| Used with UPS Model | GXT4-5000RT208 GXT4-6000RT208 |
GXT4-6000RTL630 | GXT4-8000RT208 GXT4-10000RT208 |
| Dimensions, W x D x H, Unit in (mm) | 8.1 x 19.3 x 2.8 (206 x 490 x 70) |
7.2 x 15.4 x 4.4 (184 x 390 x 113) |
8.1 x 19.7 x 5.3 (207 x 500 x 135) |
| Weight, Unit lb (kg) | 75.8 (34.4) | 45.4 (20.6) | 71.1 (32.3) |
| Battery Parameters | |||
| Type | Valve-regulated, non-spillable, flame retardant, lead acid | ||
| Kit Quantity x Battery Quantity x V x Rating | 2 x 6 x 12V x 9.0 AH | 2 x 10 x 12V x 5.0AH | 2 x 12 x 12V x 9.0 AH |
| Recharge Time | 3 hours to 90% capacity after full discharge into 100% load | ||
| External Battery Cabinet Specifications | |||
| Model Number | GXT4-144VBATT | GXT4-240VBATT | GXT4-288VBATT |
| Used with UPS Model | GXT4-5000 & GXT4-6000RT208 | GXT4-6000RTL630 | GXT4-8000 & GXT4-10000RT208 |
| Dimensions, W x D x H, Unit in (mm) | 16.9 x 26.1 x 3.3 (430 x 662 x 85) |
16.9 x 22.6 x 6.8 (430 x 574 x 173) |
16.9 x 26.5 x 6.8 (430 x 672 x 173) |
| Weight, Unit lb (kg) | 99.9 (45.3) | 143.3 (65) | 167.6 (76.2) |
| Battery Parameters | |||
| Type | Valve-regulated, non-spillable, lead acid | ||
| Kit Quantity x Battery Quantity x V x Rating | 2 x 6 x 12V x 9.0 AH | 2 x 10 x 12V x 9.0 AH | 2 x 10 x 12V x 9.0 AH |
| Environmental | Operating Temp, Storage Temp, Operating Elevation, and Relative Humidity: Same as UPS | ||
| Power Distribution Box Specifications: GTX4-5000RT208, GXT4-6000RT208 and GXT4-6000RTL630 | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Power Distribution Box Model Number | PD2-HDWR -MBS | PD2-001 | PD2-002 | PD2-003 | PD2-004 | PD2-005 | PD2-006 | PD2-007 | PD2-L630* |
| Dimensions, W x D x H, Unit in (mm) | 5.2x15.5x3.5 (132x393x88) | 4.7x13.2x4.1 (119x335x105) |
|||||||
| Weight, lb (kg) | 8.2 (3.7) | 11 (5) | 10.8 (4.9) | 10.8 (4.9) | 12.1 (5.5) | 12.8 (5.8) | 11.7 (5.3) | 11.7 (5.3) | 8.8 (4) |
| Input AC Specification | |||||||||
| Amp Rating | 30A 2-pole input breaker for UPS input power | ||||||||
| Input Power Connection | Hardwired | L14-30P | L14-30P | L14-30P | L14-30P | L14-30P | L14-30P | L14-30P | |
| Output Power Connection | Hardwired | (1)L6-30R, (1)L14-30R, (4) 5-15/20R T-slot |
(2)L6-20R (2)5-15/20R T-slot |
(2)L6-30R (4)5-15/20R T-slot |
(4) L5-20R (2) L5-30R |
(4) L5-20R (2) L6-30R |
(4) L6-20R | (2) L6-20R (2) L5-20R |
(2) L6-20R (2) L6-30R |
| Power Distribution Box Specifications: GTX4-8000RT208 and GXT4-10000RT208 | ||||||
|---|---|---|---|---|---|---|
| Power Distribution Box Model Number | PD2-101 | PD2-102 | PD2-103 | PD2-104 | PD2-105 | PD2-106 |
| Dimensions, W x D x H, Unit in (mm) | 7.4 x 5.7 (188 x 145) | |||||
| Weight, lb (kg) | 4.4 (2) | 6.6 (3) | 6.6 (3) | 6.6 (3) | 4.4 (2) | 6.6 (3) |
| Input AC Specification | ||||||
| Amp Rating | 63 Amps | |||||
| Input Power Connection | Custom Connector 3W + G(L-L-N-G) to UPS | |||||
| Output Power Connection | (2) L6-30R (8) 5-15/20R T-slot |
(4) L6-20R (4) 5-15/20R T-slot |
(4) 5-15/20R T-slot (4) L6-30R |
(4) 5-15/20R T-slot (2) L6-30R (2) L6-20R |
(4) 5-15/20R T-slot (2) L5-30R (2) L5-20R |
(4) L6-20R (4) L5-20R |
| Power Distribution Box Specifications: GTX4-8000RT208 and GXT4-10000RT208 | |||||||
|---|---|---|---|---|---|---|---|
| Power Distribution Box Model Number | PD2-107 | PD2-108 | PD2-109 | PD2-200 | PD2-201 | PD2-202 | PD2-204 |
| Dimensions, W x D x H, Unit in (mm) | 7.4 x 5.7 (188 x 145) | ||||||
| Weight, lb (kg) | 6.6 (3) | 6.6 (3) | 6.6 (3) | 4.4 (2) | 4.4 (2) | 4.4 (2) | 12 (5.4) |
| Input AC Specification | |||||||
| Amp Rating | 63 Amps | ||||||
| Input Power Connection | Custom Connector 3W + G(L-L-N-G) to UPS | ||||||
| Output Power Connection | (4) L5-20R (4) 5-15/20R T-slot |
(2) L6-20R (2) L6-30R |
(2) L14-30R | (4) IEC320-C19 (4) IEC320-C13 |
(2) IEC320-C19 (8) IEC320-C13 |
(12) IEC320-C13 | (2) IEC309-32A (4) IEC320-C13 |
* PD2-L630 is only compatible with the GXT4-6000RTL630 UPS model
Views:

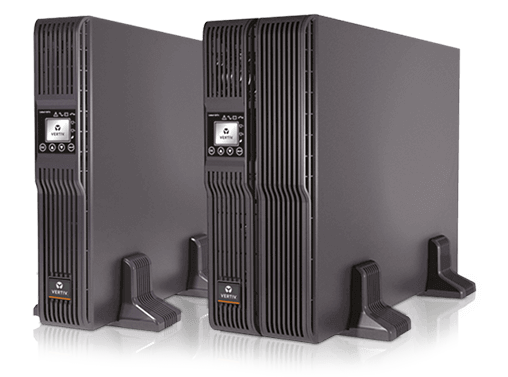

Liebert GXT4, 500-10,000VA
Documentation:
Download the Vertiv Liebert GXT4 UPS Datasheet (.PDF)
