Vertiv Liebert IntelliSlot Unity
Communications Card

Vertiv Liebert IntelliSlot Unity

Vertiv Products

Liebert IntelliSlot

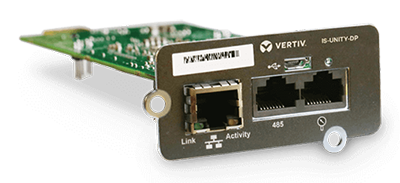

Vertiv Liebert IntelliSlot Unity Platform Card

#IS-UNITY-DP
Get a Quote!

Get a Quote

Click here to jump to more pricing!

Overview:

Best Suited For:

Banking, Financial and Insurance
Data Center/Colocation/Hosting
Government
Healthcare
Retail and Wholesale
Telecom

Provides Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications. Provides a communication interface to Trellis, LIFE Services, Liebert Nform, and third-party building and network management applications.

The Liebert IntelliSlot Unity Platform brings SNMP, BACnet IP, BACnet MSTP, Modbus TCP, Modbus RTU, YDN23 and Web management capability to many models of Vertiv’s power and cooling equipment. The cards employ Ethernet and RS-485 networks to monitor and manage a wide range of operating parameters, alarms and notifications. The card also supports communication for LIFE Services by VERTIV.

IntelliSlot Unity cards are a form, fit, and function replacement for several Liebert IntelliSlot Web and 485 cards.

Liebert IntelliSlot Unity Platform

Compatability with Liebert Equipment

IntellSlot Card	Compatible with
IS-UNITY-DP IS-UNITY-SNMP IS-UNITY-LIFE	Alber BDSU-50™ Liebert APM™ Liebert APS™ Liebert Challenger 3000™ Liebert CRV™ Liebert CW™ Liebert DCL™ Liebert DCP™	Liebert Deluxe System/3™ Liebert DS™ Liebert DSE™ Liebert EPM™ Liebert EXC™ Liebert eXL™ Liebert EXL™ S1 Liebert eXM™ Liebert FDC™ Liebert FPC™	Liebert GXT3™ Liebert GXT4™ Liebert HPC™ Liebert HPC-S/M/R/W/Generic™ Liebert HPM™ Liebert NX™ 225-600 kVA Liebert NXC™ Liebert NXL™ * Liebert NXR™ Liebert PCW™/PDX™	Liebert PeX™ * Liebert PPC™ Liebert RDC™ Liebert RX™ Liebert XDC™ Liebert XDP™ Liebert XDP-Cray™

Compatability with Communication Protocols

Liebert IntelliSlot Card	Communication Protocol
	HTTP HTTPS	Velocity Protocol	Email	SMS	SNMP v1, v2c, v3	BACnet IP BACnet MSTP	Modbus TCP Modbus RTU	YDN23*
IS-UNITY-DP
IS-UNITY-SNMP						—	—	—
IS-UNITY-LIFE					—	—	—	—

*YDN23 supported only for Liebert PeX and Liebert NXL.

Features and Benefits:

Benefits

Flexibility

Allows systems to be viewed from the network via browsers and popular protocols

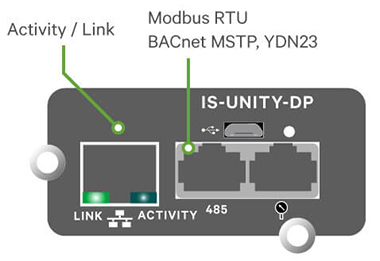

Connects to Ethernet or 485 Serial networks, or both
Multiple third-party protocols (SNMP v1/v2c/v3, BACnet IP/MSTP, Modbus TCP/RTU, YDN23) from a single card

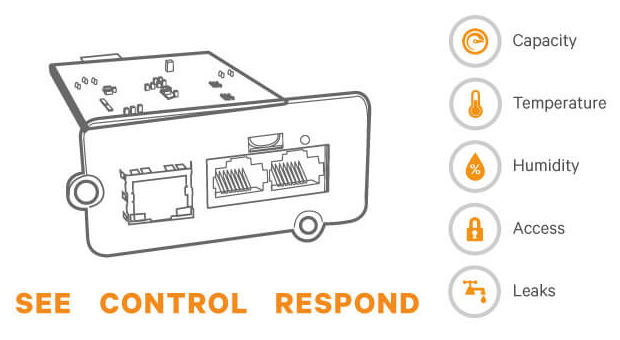

Environmental support using Liebert SN Sensors - Temperature, Humidity, Leak Detection, Doors, Contact Closures
Supports a variety of Vertiv software tools and services

Security

HTTPS message and Web Access encryption
SNMP v3 with installable certificates

Features

Provides Web access to the installed device via popular web browsers - Microsoft Internet Explorer, Mozilla Firefox, Google Chrome, and Safari (MacBook and iPad)
Provides alarm notifications ia eMail and text messaging
Supports envinronmental monitoring via Liebert SN Sensors
Third-party protocols (Modbus TCP/RTU, BACnet IP/MSTP, SNMP v1/v2c/v3, and YDN23) are supported for building and network management applications
Enables Vertiv software tools and services, including Trellis, Liebert Nform, and LIFE Services
SNMPv1, SNMPv2c and SNMPv3 with MIB-II support
HTTP/HTTPS 1.1
BootP
DHCP per RFC2131/2132
Remote firmware updates via a Web browser
IPv6 support for HTTP/HTTPS, DHCPv6, e-mail, SMS, SNMP v1/v2c/ v3 and Modbus TCP
Liebert SN Environmental Sensor Support (Web, SNMP, SMS and SMTP): Temperature, Humidity, Door Closure, Contact Closure and Leak Detection: Liebert SN-2D, Liebert SN-3C, Liebert SN-L, Liebert SN-T, Liebert SN-TH, Liebert SN-Z01, Liebert SN-Z02 and Liebert SN-Z03

Specifications:

Liebert IntelliSlot RDU101 Specifications
Power Requirements	DC Input: 7 to 12 VDC Power Consumption: 3.6 W maximum
Dimensions, W x D x H	2.97 x 5.2 x 1.45 in. (75.5 x 15 x 37 mm)
Weight (assembled)	Net: 7 oz (0.2 kg) Shipping: 1.3 lb (0.6 kg)
Ambient Operating Environment	32 to 104°F (0 to 40°C); 10% to 90% RH (non-condensing)
Ambient Storage Temperature	-4 to 140° F (-20 to 60°C)

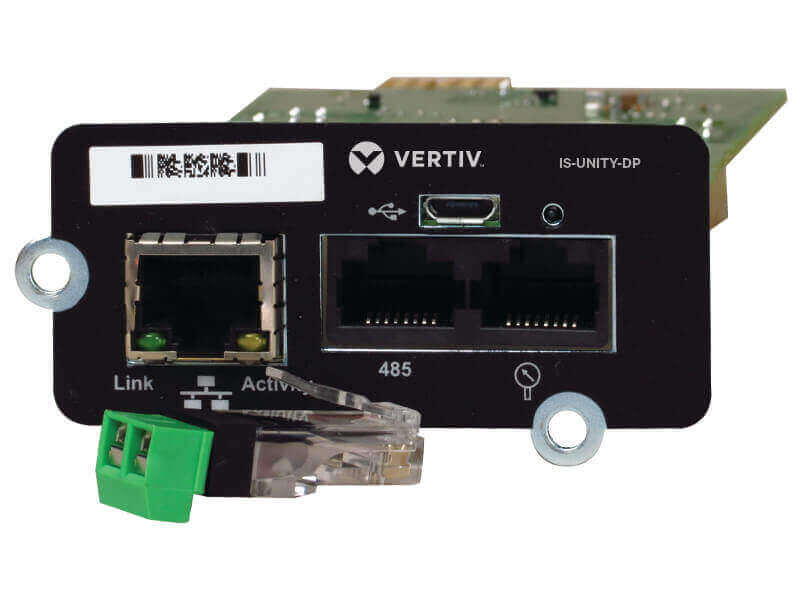

Communication Ports	Ethernet Communication: RJ-45 (LIFE Services requires a network connection to the Internet) RJ-45 (RJ-45 to 2-position terminal-block adapter)
Wiring
10/100 Mb/s Ethernet Connector	Standard Category 5E Cable - 328 ft. (100m)
RJ-45 - One-Wire Connector	Liebert Integrated One-Wire Sensor Cable or 2m Cat 5E to Modular 1-Wire - 65.6 ft. (20m)
