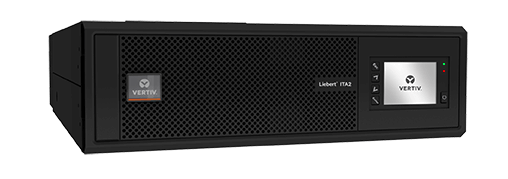

Vertiv Liebert ITA2 UPS
8 and 10 kVA, 208/220V Three-Phase
Click here to jump to more pricing!
Overview:
- Banking, Financial and Insurance
- Data Center/Colocation/Hosting
- Education
- Government
- Healthcare
- Retail and Wholesale

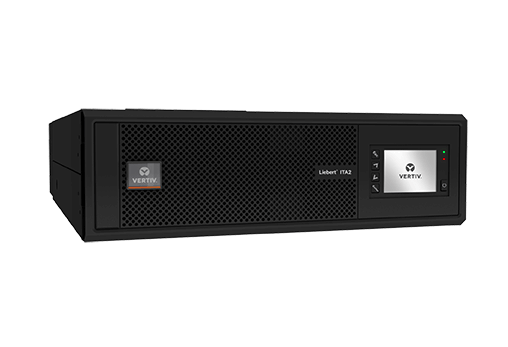

The Liebert ITA2 UPS offers economical, efficient and reliable three-phase power for critical loads under 10kVA. Use in a rackmount or tower configuration. This intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate.
The Liebert ITA2 UPS features: 8 and 10kVA three-phase (3:3) online power protection, high power factor, compact design, rackmount or tower form factor, high operating efficiency, flexible output distribution, optional maintenance bypass cabinet, intuitive control panel. Easy to install, cable and operate.
Ideally Suited For Powering Many IT Systems
- IT closets, servers and more
- Branch, small-midsize IT systems
- Medical/lab testing equipment
- VoIP
- ISDN & frame relay applications
- Storage systems
- Security systems
- Light industrial
- Replacement for aging UPS
The Small Three-Phase UPS Solution
For three-phase critical systems under 10kVA, consider the Liebert ITA2 UPS. It stabilizes power to protect systems and data. Professionals can define the feature set they need to meet their IT performance goals.

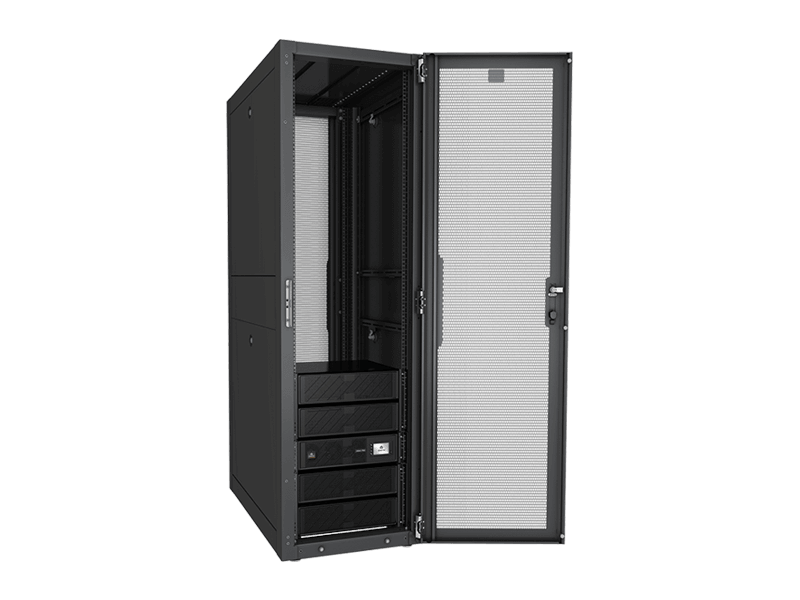

Rackmount Power Made Easy
- Compact UPS system with intuitive control panel
- Optimized modules minimize space used in the rack
- Easily configurable

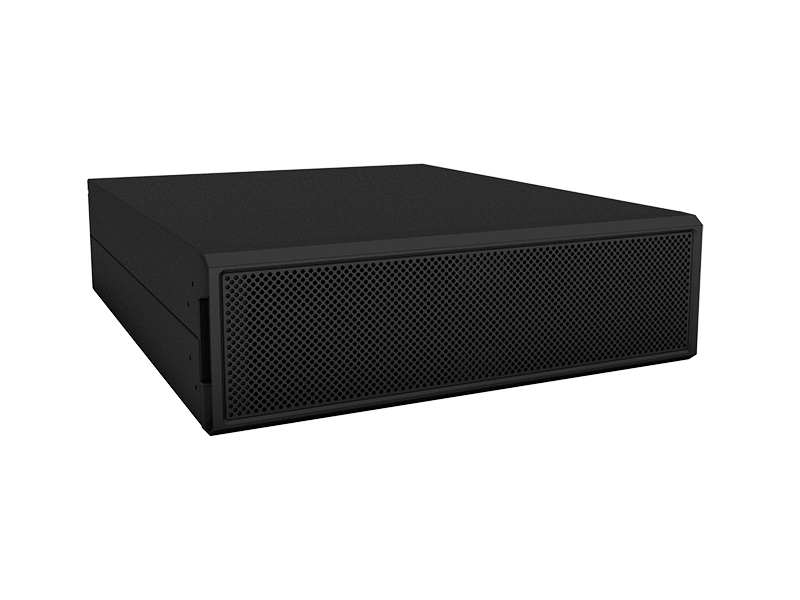

Shown here is the Liebert ITA2 UPS with (2) battery cabinets.
Vertical/Tower Placement
- Support base provides convenient and stable placement on a floor
- Adjustable display panel ensures readability and ease of use
- Configuration easily extends to batteries and the maintenance bypass cabinet
Shown here the UPS and battery cabinets in a tower arrangement.
Flexible, Reliable and Functional
The Liebert ITA2 offers a space-saving design to meet your power needs. Options are available to address specific runtimes, distribution and availability requirements.
Save Now, Save Later. Compared to Competitive Models.
- Lower first costs
- Reduce operating costs
- Minimize downtime costs y Lower TCO

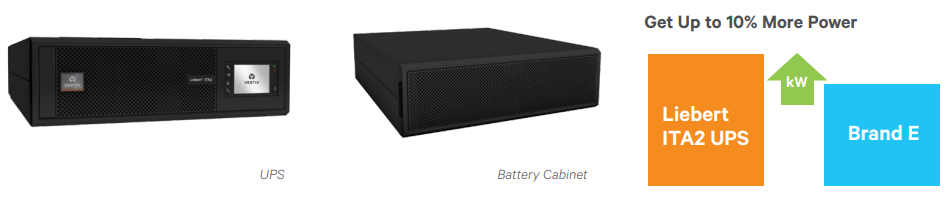

More of What You Need: High Power Density
The Liebert ITA2 is designed with a high power factor in a small footprint. This increased power density maximizes the usable power to meet the needs of advanced IT operations.

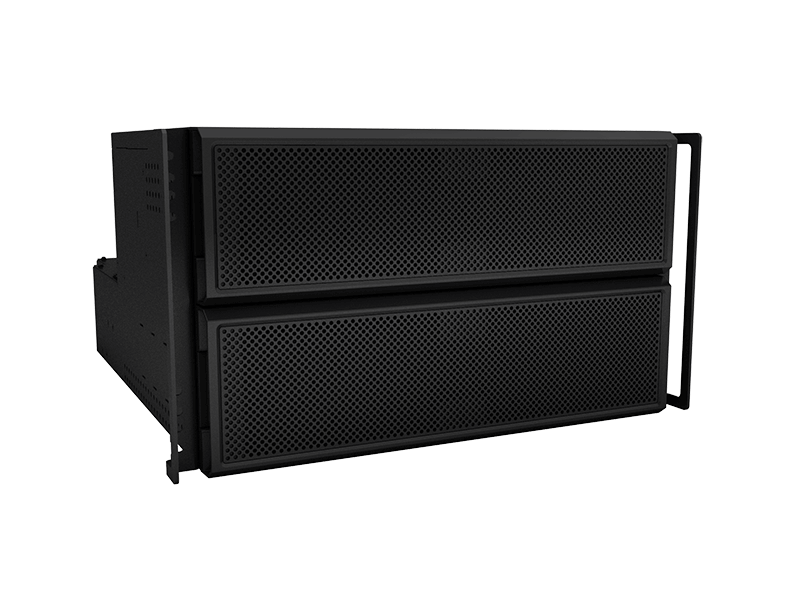

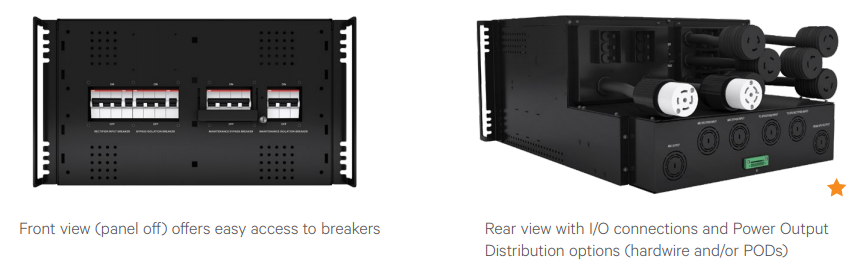

Maintenance Bypass Cabinet Enables Availability and Flexibility
Utilize the optimized maintenance bypass option to enhance availability and keep your critical systems running during routine service or replacement. A maintenance bypass interlock ensures proper bypass operation.
Power Distribution: Easier, Faster, Less Costly Deployment
Fast, flexible and easy to deploy power output distribution options can be quickly matched for specific power requirements. Hardwired is standard, with several integrated options to obtain convenient receptacle connectivity.
Intelligent Communications
The Liebert ITA2 offers an intuitive control panel, network connectivity communications card and optional software monitoring, all designed to ensure visibility, control and peace of mind for manned or unmanned locations. You can even monitor key environmental and room conditions.
Trellis Power Insight
Trellis Power Insight is an application that can monitor your Liebert UPS systems and provide real-time trending for critical UPS performance management. In the event of a need to shutdown the UPS,the software ensures a graceful shutdown routine so no damage occurs to the data or systems.
Service and Support
We get you started and keep you going. Only Vertiv Services can provide the degree of support required to ensure the availability needed for critical systems. Several programs are available to meet the needs of your operation.

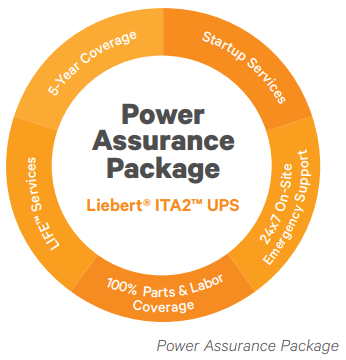

The Power Assurance Package from Vertiv Services gives you a trusted partner and a complete, worry-free power protection solution to assure uptime at your small or remote IT sites.

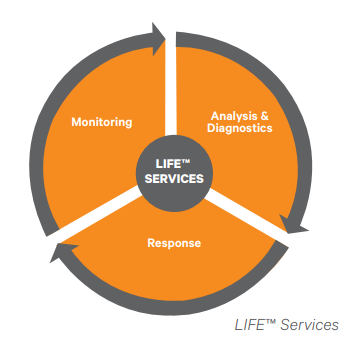

Vertiv LIFE Services provides secure, remote monitoring by experts to provide early detection and response.
Features and Benefits:
Key Benefits
- Save space, footprint
- Reliable power protection to protect critical systems (stabilizes bad power)
- Maximizes rated power output
- Extended battery life
- Extended backup times available
- Low operating costs
- Low capital costs
- Flexible distribution, mix and match to power a variety of loads
- Easy to use, minimizes human error
- Local and remote monitoring provides greater visiblity
- Reduces installation time
- Vertiv Services improves uptime while reducing demands on the customer's staff
Features
- Compact, high power density design
- Online Three-phase (3:3)
- High power factor
- Rackmount or tower form factor
- Scalable battery runtimes
- Fast battery recharge
- High operating efficiency (>93% in dual conversion mode, 99% in eco mode)
- Flexible output distribution and cord set options
- Controllable output terminals
- Wide input voltage range
- Maintenance bypass cabinet (optional)
- Intuitive control panel
- Advanced battery monitoring
- Unity network communications card (IT network and building management systems)
- Easy to install, wire and operate
- Power Assurance Package and LIFE Services options
- SNMP MIBs Monitoring (see software downloads)
Specifications:
| Liebert ITA2 UPS | 8 kVA | 10 kVA |
|---|---|---|
| Input 3 Phase | ||
| Rated Voltage | 208/220 VAC, 3 Phase, 4W+Gnd | |
| Voltage Range | 96VAC ~ 144VAC | |
| Rated Frequency | 60Hz | |
| Frequency Range | 40Hz~70Hz | |
| Power Factor | ≥0.99, at full load; ≥0.98, at half load | |
| Output 3 Phase | ||
| Rated Power | 7.2kW | 10kW |
| Power Factor | .9 | 1 |
| Voltage | 208/120VAC or 220/127VAC (3 Phase, 4W + Gnd) | |
| Frequency Synchronization Range | Rated frequency ± 3Hz. Configurable range: ±0.5 Hz~�5Hz | |
| Frequency Track Rate | 0.5Hz/s. Configurable range: 0.2/0.5/1Hz/s (single UPS), 0.2Hz/s (parallel system) | |
| Crest Factor | 3:1 | |
| Voltage Harmonic Distortion | <4% (linear load); <5% (non-linear load) | |
| Dynamic Response Recovery Time | 60ms | |
| Overload Capacity | At 25˚C: 105% ~ 125%, 5 min; 125% ~ 150%, 1 min; 150%, 200ms | |
| Bypass Voltage | Upper Limit: +10% Lower Limit: -10%, -15%, -20%; default -10% | |
| AC-AC Efficiency | Up to 93% | |
| Battery | ||
| Type | Sealed, Lead-Acid, Maintenance-Free | |
| Cell No. | 192 by default | |
| Rated Voltage | 384VDC | |
| Charge Current | <3.5A | |
| Transfer Time | ||
| Utility to Battery | 0ms | |
| Inverter to Bypass | Synchronous Transfer: ≤0ms Asynchronous Transfer (default): ≤20ms or 40ms, 60ms, 80ms, 100ms and 200ms are available | |
| Other Features | ||
| Noise | <55dB | |
| Panel Display Mode | Color LCD | |
| Surge Protection | IEC/EN-61000-4-5, Endurance Level 4 (4kV) (live line to earth), Level 3 (2kV) (during live lines); ANSI C62.41, 6kV/20hms | |
| Protection Level | IP20 | |
| Ambient Condition | ||
| Operating Temperature | 32~122˚F (0~50˚C) (0.7 will be derated above 122˚F [50˚] | |
| Storage Temperature | No Battery: -40~158˚F (-40~ +70˚C); With Battery: -13~131˚F (-25~ +55˚C) | |
| Relative Humidity | 5%RH~ 95% RH, non-condensing | |
| Altitude, ft. (m) | Sea Level to 10,000 ft. (3000m) without derating | |
| Safety | ||
| Safety | IEC/EN62040-1; UL/CSA, cULus (UL 1778 5th Edition, CSA No. 22.2 107.3) | |
| EMC | ||
| Conduction Emission | IEC/EN62040-2 | |
| Harmonic Current | IEC/EN61000-3-12 | |
| Dimensions, W x D x H, in. (mm) | ||
| UPS | 16.9 x 19.7 x 5.1 (430 x 500 x 130) | |
| Battery Cabinet (minimum of 2 required) | 16.9 x 19.7 x 5.1 (430 x 500 x 130) | |
| Maintenance Bypass Cabinet (MBC) | 16.9 x 22.4 x 10.3 (430 x 570 x 261) | |
| Weight, lb. (kg) | ||
| UPS | Net: 50.7 (23) Shipping: 70.5 (32) |
|
| Battery cabinet | Net: 115 (52.2) each Shipping: 306.4 (139) |
|
| MBC | Net: 39.7 (18.02) Shipping: 59.5 (27) |
|
Views:
Documentation:
Download the Vertiv Liebert ITA2 UPS Datasheet (.PDF)
