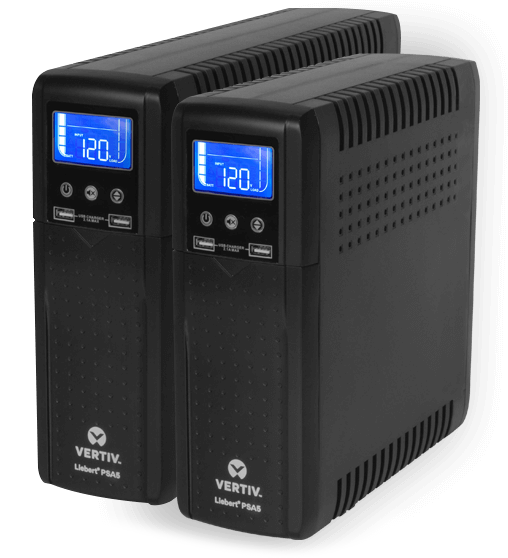

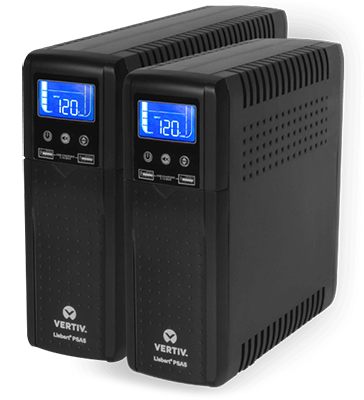

Vertiv Liebert PSA5 UPS
Battery Backup for Computers, Monitors, Gaming Consoles and other Electronics
Click here to jump to more pricing!
Overview:
- Broadcast and Entertainment
- Education
- Professional Services
- Retail and Wholesale
The PSA5 UPS is an economical, line-interactive UPS battery backup technology designed with the features you need for reliable power protection for small/home office computers, network gear, and home entertainment equipment. Designed with easy controls for user friendly operation, the Liebert PSA5 provides the run time to save work in process and orderly shutdown your equipment.
Designed with easy controls for user friendly operation, the Liebert PSA5 UPS and battery backup provides ample run time to save work in progress and shutdown your equipment in an orderly fashion.
Keep Your Electronics Safe & Running with Liebert PSA5 UPS
Power surges and the sudden loss of power can damage computers, televisions, and other electronics. Power strips are only equipped with handling protection from power surges. It does not protect against brownouts, blackouts or drops in voltage. If you want the ultimate protection of household or business electronics, you need the Liebert PSA5 UPS to protect against power supply interruptions.
The Energy Star certified PSA5 is an economical, line-interactive UPS battery backup technology designed with the features you need for reliable power protection for small office/home office computers, network gear, and home entertainment equipment. With built in USB port, included USB cable and with available software you can receive remote alerts and complete an unattended orderly shutdown of your systems. This Liebert battery backup is easy to set up and perfect for televisions, computers, modems/routers, home surveillance, entertainment equipment, and all other electronics.
- Surge Protection & Battery Backup: Available in 500VA, 700VA, 1000VA, or 1500VA; 120VAC y 10 Total Outlets & USB: 5 surge only & 5 battery & surge outlets with built in USB device charging port
- Excellent Warranty: 3-year full unit coverage including the battery with no-hassle, advanced replacement warranty
- LCD Display: User friendly LCD display screen on front of unit for easily monitoring estimated run time, load capacity, battery status, and input/output voltage and frequency
- Consistent Power: Uses line-interactive, AVR technology (Automatic Voltage Regulation), which ensures consistent and clean power at all times
- Energy Star: A governmentbacked symbol that is awarded to energy efficiency products that meet eco-friendly requirements
Liebert PSA5 is perfect for protecting:
- Desktop Computers
- Gaming Consoles
- Workstations and Monitors
- Wi-Fi Routers
- Surveillance Systems
- A/V equipment
- POS Terminals
- Other Important Electronics
Features and Benefits:
Benefits:
- Protects televisions, desktop computers, gaming consoles, workstations, networks/routers, surveillance & other important electronics
- Energy Star certified UPS provides backup power and protection during damaging surges, spikes or power outages while remaining energy efficient
- Excellent 3-year full unit coverage including the battery with no-hassle, advanced replacement warranty
Features:
- 5 surge only & 5 battery & surge outlets with built in USB charging port
- User friendly LCD display screen on front of unit for easily monitoring estimated run time, load capacity, battery status and input/output voltage and frequency
- Uses line-interactive, AVR technology (Automatic Voltage Regulation), which ensures consistent and clean power at all times
Specifications:
| PSA5-500MT120 | PSA5-700MT120 | PSA5-1000MT120 | PSA5-1500MT120 | |
|---|---|---|---|---|
| System Specifications | ||||
| Capacity | 500 VA / 300 W | 700 VA / 420 W | 1000 VA / 600 W | 1500 VA / 900 W |
| Unit Dimensions, in (mm) W x D x H | 3.9 x 11.4 x 11 in (99 x 289 x 280 mm) |
3.9 x 11.4 x 11 in (99 x 289 x 280 mm) |
3.9 x 11.4 x 11 in (99 x 289 x 280 mm) |
3.9 x 11.4 x 11 in (99 x 289 x 280 mm) |
| Unit Weight, lbs (kg) | 13.4 lbs (6.1 kg) | 15.7 lbs (7.1 kg) | 17.9 lbs (8.1 kg) | 26.5 lbs (12.0 kg) |
| Shipping Dimensions, in (mm) W x D x H 6 | 6.2 x 14.2 x 14.5 in (158 x 360 x 369 mm) |
6.2 x 14.2 x 14.5 in (158 x 360 x 369 mm) |
6.2 x 14.2 x 14.5 in (158 x 360 x 369 mm) |
6.2 x 14.2 x 14.5 in (158 x 360 x 369 mm) |
| Shipping Weight, lbs (kg) | 14.6 lbs (6.6 kg) | 16.8 lbs (7.6 kg) | 19.0 lbs (8.6 kg) | 28.0 lbs (12.7 kg) |
| Input AC | ||||
| Nominal Voltage | 120 VAC | |||
| Voltage Range | 86-143 VAC | |||
| Frequency Range | 50 or 60 Hz, +/- 5Hz, autosensing | |||
| Protection | Resettable Circuit Breaker | |||
| Surge Energy Rating | 316 Joules | |||
| Input Cord | 6 ft. attached with NEMA 5-15P | |||
| Output AC (On Utility) | ||||
| Nominal Voltage | 120 VAC | |||
| Voltage Range | 105-143 VAC | |||
| Frequency Range | 60 Hz, +/- 5Hz, autosensing | |||
| Efficiency | >90% at full load | |||
| Output AC (On Battery) | ||||
| Nominal Voltage | 120 VAC | |||
| Voltage Range | Nominal +/- 6% | |||
| Frequency Range | 60 Hz, +/- 0.5Hz | |||
| Waveform | PWM Simulated Sine Wave | |||
| Transfer Time | 6 ms, typical | |||
| Overload Capacity | 100-119% Continuous, 120% for 60 seconds, 150% immediate shutdown | |||
| Protection | Electronic (over current, short circuit w/ latching shutdown) | |||
| Battery Type | Sealed Valve Regulated Lead Acid (VRLA) | |||
| Backup Time (Full Load/Half Load) mins | 2 / 8 | 2 / 8 | 2 / 7 | 3 / 11 |
| Battery Manufacturer / Model | CSB / GP1272 Leoch / DJW12-7.0 | CSB / HR1234W CSB / UPS12460 Leoch / DJW12-9.0 | CSB / HR1234W CSB / UPS12460 Leoch / DJW12-9.0 | Vertiv PSA5-12VBATTKIT |
| Battery Quantity x VDC x Ah | 1 x 12V x 7.0Ah | 1 x 12V x 9.0Ah | 1 x 12V x 9.0 | 1 Kit |
| Battery Backed Outlets | (5) NEMA 5-15R | |||
| Surge-only Outlets | (5) NEMA 5-15R | |||
| Environmental Requirements | ||||
| Operating Temperature | 32-104ºF (0-40ºC) | |||
| Operating Elevation, feet (meter) | 0-4,921 ft (0-1,500 meter) | |||
| Operating Temperature | 32-95ºF (0-35ºC) | |||
| Operating Elevation, ft (m) | 4,922-9,842 ft (1,500.5-3,000 meter) | |||
| Relative Humidity | 0-95% non-condensing | |||
| Storage Temperature | 5 to 113ºF (-15 to 45ºC) | |||
| Storage Elevation, ft (m) | 0-49,212 ft (0-15,000 meter) | |||
| Audible Noise | <40 dBA @ 3 ft (1m) from all sides | |||
| Agency | ||||
| Safety | cTUVus (UL 1778 5th Edition), CSA 22.2 no. 107.3:2014 | |||
| RFI / EMI | FCC Part 15, Class B | |||
| Surge Immunity | EN61000-4-5; Line to Neutral: Level 2; Line to Earth: Level 3 | |||
| Transportation | ISTA Procedure 1A | |||
Views:
Documentation:
Download the Vertiv PSA5 UPS Datasheet (.PDF)
