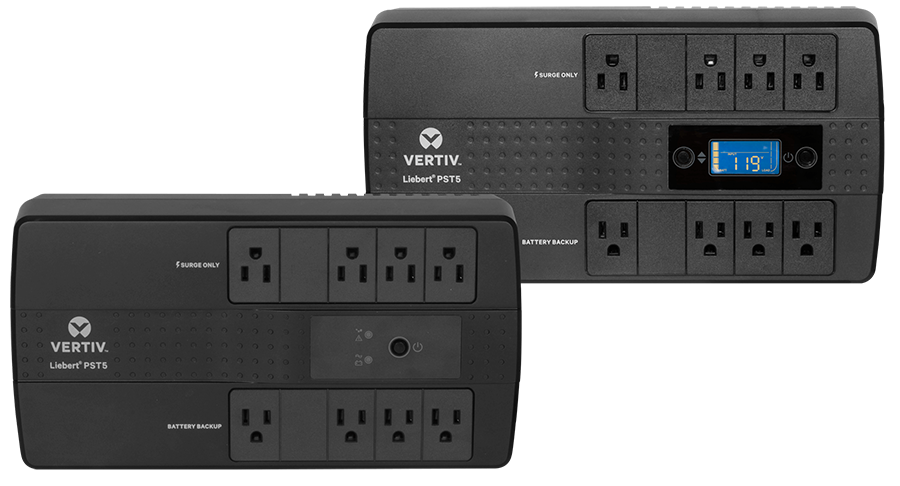

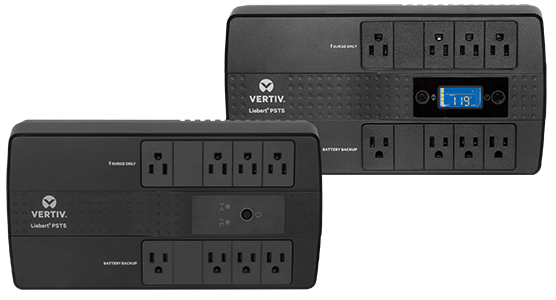

Vertiv Liebert PST5 UPS
Battery Backup for Computers, Monitors, Gaming Consoles and other Electronics
Click here to jump to more pricing!
Overview:
- Broadcast and Entertainment
- Education
- Professional Services
- Retail and Wholesale
The Liebert PST5 is an offline UPS technology that provides power backup protection for desktop computers, gaming consoles, workstations, wireless networks and routers, surveillance systems and other electronics. Designed with easy controls for worry free operation, the Liebert PST5 features ample time for you to save your work in progress and/or complete an orderly shutdown for your equipment when you experience a power outage.
Designed with easy controls for worry free operation, the Liebert PST5 UPS and battery backup features ample time for you to save your work in progress and complete an orderly shutdown for your equipment when you experience a power outage.
Never Fear an Outage Again with Liebert PST5 Battery Backup
The Liebert PST5 is an offline UPS technology that provides power backup protection for desktop computers, gaming consoles, workstations, wireless networks and routers, surveillance systems and other electronics.
The Energy Star certified PST5 series UPS provides backup power and protection during damaging surges, spikes or power outages while remaining energy efficient. It also includes an excellent 3-year, full unit coverage warranty, output connections of (8) NEMA 5-15R and an input connection of a NEMA 5-15P with a 6 foot cord.
- Surge Protection & Battery Backup: Available in 350, 500, 660, or 850 VA; 120VAC
- Never Fear an Outage: Provides backup power and protection during damaging surges, spikes or power outages
- Excellent Warranty: 3-year full unit coverage including the battery with no-hassle, advanced replacement warranty
- 8 Outlets: 4 surge only and 4 surge/back-up battery outlets
- LCD Display (On 660VA & 850VA Models): User friendly LCD display screen on front of unit for easily monitoring source status, load capacity, battery status, and input/output voltage and frequency
- Energy Star: A governmentbacked symbol that is awarded to energy efficiency products that meet eco-friendly requirements
Liebert PSA5 is perfect for protecting:
- Desktop Computers
- Gaming Consoles
- Workstations and Monitors
- Wi-Fi Routers
- Surveillance Systems
- A/V equipment
- POS Terminals
- Other Important Electronics
Features and Benefits:
Benefits:
- Protects televisions, desktop computers, gaming consoles, workstations, networks/routers, surveillance & other important electronics
- Energy Star certified UPS provides backup power and protection during damaging surges, spikes or power outages while remaining energy efficient
Features:
- 8 outlets - 4 surge & 4 battery outlets with USB port and multiple mounting capabilities
- Excellent 3-year full unit coverage including the battery with no-hassle, advanced replacement warranty
- RJ45/11 for data line surge protection, advanced early warning of shutdown, and EMI/RFI filters
Specifications:
| PST5-350MT120 | PST5-500MT120 | PST5-660MT120 | PST5-850MT120 | |
|---|---|---|---|---|
| System Specifications | ||||
| Capacity | 350 VA / 200 W | 500 VA / 300 W | 660 VA / 400 W | 850 VA / 500 W |
| Unit Dimensions, in (mm) W x D x H | 12 x 6.24 x 3.82 in (305 x 158.5 x 97 mm) |
12 x 6.24 x 3.82 in (305 x 158.5 x 97 mm) |
12 x 6.24 x 3.82 in (305 x 158.5 x 97 mm) |
12 x 6.24 x 3.82 in (305 x 158.5 x 97 mm) |
| Unit Weight, lbs (kg) | 6.6 lbs (3.0 kg) | 7.7 lbs (3.5 kg) | 9.4 lbs (4.3 kg) | 9.7 lbs (4.4 kg) |
| Shipping Dimensions, in (mm) W x D x H 6 | 15.0 x 10.5 x 8 in (381 x 266 x 203 mm) |
15.0 x 10.5 x 8 in (381 x 266 x 203 mm) |
15.0 x 10.5 x 8 in (381 x 266 x 203 mm) |
15.0 x 10.5 x 8 in (381 x 266 x 203 mm) |
| Shipping Weight, lbs (kg) | 7.9 lbs (3.6 kg) | 9.0 lbs (4.1 kg) | 10.6 lbs (4.8 kg) | 11.0 lbs (5.0 kg) |
| Input AC | ||||
| Nominal Voltage | 120 VAC | |||
| Voltage Range | 90-145 VAC | |||
| Frequency Range | 60 Hz, +/- 5Hz, autosensing | |||
| Protection | Resettable Circuit Breaker | |||
| Surge Energy Rating | 316 Joules | |||
| Input Cord | 6 ft. attached with NEMA 5-15P | |||
| Output AC (On Utility) | ||||
| Nominal Voltage | 120 VAC | |||
| Voltage Range | 96-145 VAC | |||
| Frequency Range | 60 Hz, +/- 1Hz, autosensing | |||
| Efficiency | >95% at full load | |||
| Output AC (On Battery) | ||||
| Nominal Voltage | 120 VAC | |||
| Voltage Range | Nominal +/- 8% | |||
| Frequency Range | 60 Hz, +/- 0.5Hz | |||
| Waveform | PWM Simulated Sine Wave | |||
| Transfer Time | 6-8 ms, typical (10 ms. maximum) | |||
| Overload Capacity | 105% for 10 seconds, 120% immediate shutdown | 110% for 10 seconds, 120% immediate shutdown | ||
| Protection | Electronic (over current, short circuit w/ latching shutdown) | |||
| Battery Type | Sealed Valve Regulated Lead Acid (VRLA) | |||
| Backup Time (Full Load/Half Load) mins | 4 / 11 | 3 / 9 | 2 / 7 | 1.5 / 6 |
| Battery Manufacturer / Model | CSB / GP1245 Leoch / DJW12-4.5 | CSB / GP1221 Leoch / DJW12-5.0 0 | Leoch / DJW12-6.0 BB / BP5-12 | Leoch / DJW12-6.0 BB / SHR7-12 |
| Battery Quantity x VDC x Ah | 1 x 12V x 4.5Ah | 1 x 12V x 5.0Ah | 1 x 12V x 5.0 / 6.0Ah | 1 x 12V x 6.0 / 7.0Ah |
| Battery Backed Outlets | (4) NEMA 5-15R | |||
| Surge-only Outlets | (4) NEMA 5-15R | |||
| Environmental Requirements | ||||
| Operating Temperature | 32-104ºF (0-40ºC) | |||
| Operating Elevation, feet (meter) | 0-4,921 ft (0-1,500 meter) | |||
| Operating Temperature | 32-95ºF (0-35ºC) | |||
| Operating Elevation, ft (m) | 4,922-9,842 ft (1,500.5-3,000 meter) | |||
| Relative Humidity | 0-95% non-condensing | |||
| Storage Temperature | 5 to 113ºF (-15 to 45ºC) | |||
| Storage Elevation, ft (m) | 0-49,212 ft (0-15,000 meter) | |||
| Audible Noise | <40 dBA @ 3 ft (1m) from all sides | |||
| Agency | ||||
| Safety | cTUVus (UL 1778 5th Edition), CSA 22.2 no. 107.3:2014 | |||
| RFI / EMI | FCC Part 15, Class B | |||
| Surge Immunity | EN61000-4-5; Line to Neutral: Level 2; Line to Earth: Level 3 | |||
| Transportation | ISTA Procedure 1A | |||
